Steel Grating Common Specifications
G325/30/76
The grating with the pitch of 30mm between bearing bars and of 76mm between cross bars is the most popular type used home and abroad.it is proper for many applications such as walkways,platforms,etc.
G325/60/50
The grating with the pitch of 60mm between bearing bars and of 50mm is developed specially for mining industry.it solves the problem of mineral splash on the plate.so it is often appointed to use in processing works of mining industry.
G325/30/xx
The steel grating with 30mm spacing is the most widely used type in the industrial field. In the common steel grid series, the surface impact has a strong resistance.
G325/40/xx
The steel grating with a distance of 40mm is the most economical, lighthearted type and the most ideal choice for a small span.
| Type | Welded steel grating,pressure-locked,socket-welding |
| Steel flat size | 20x3,25x3,25x5,30x3,30x4,30x5,32x3,32x5...45x5mm |
| Beraing bar pitck | 12.5,15,20,25,30,35,40,50mm |
| Cross bar pitch | 38,50,80,100mm |
| material | Low carbon steel,stainless steel,aluminium |
| Surface treatment | Untreated,hot galvanized,painted |
| Standards | China:YB/T 4001.1-2007
USA:ANSI/NAAMM(MBG531-88)
UK:BS4592-1987
Australia:AS 1657-1985 |
Hot Galvanizing
Normally, Hot galvanizing will be carried out after end welding process. When the thickness of bearing bars is not less than 5mm, the weight of average Zinc Layer will not be less than 610g/mf. when the thickness of bearing bars is less than 5mm, the weight of average Zinc Layer will not be less than 460g/ m.The quality and requirements after hot galvanizing are subject to the standards of GB/T 13912.
Product Tags:
|
|

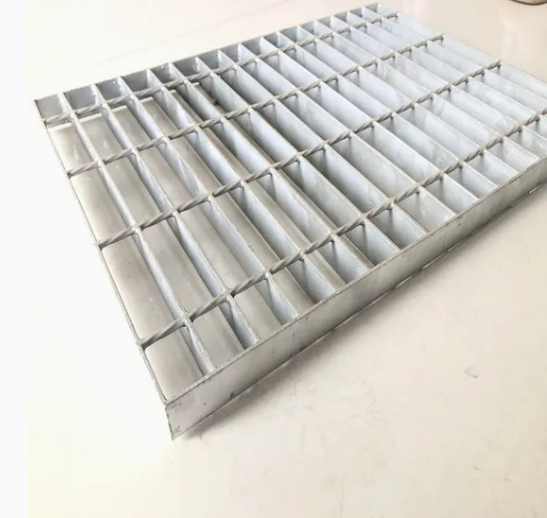

Heavy Duty Pressure Locked Steel Grating G325/30/76 for Walkways and Platforms Images
|
