Our stainless steel bar gratings are characterized by their high strength, superior durability and high resistance to corrosion for all load bearing applications. It is their long-lasting service that makes them a very economical choice over the long term. Therefore, our stainless steel bar gratings are widely used as walkways, catwalks, platforms, stairways, entranceways and trench gratings in water treatment, chemical processing, oil and gas producing, food processing plants, breweries, dairies, sewage/power plants, and hydrocarbon facilities.

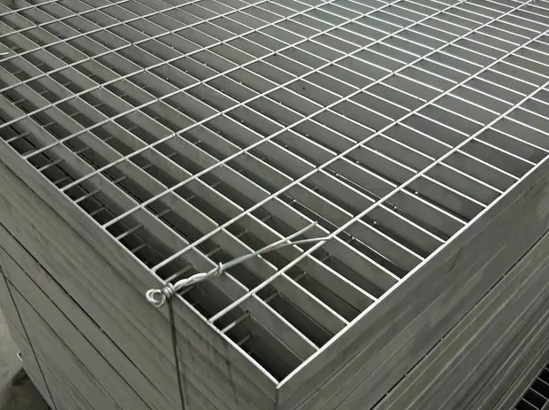

Manufactured from alloy types 304, 304L, 316, or 316L, our stainless steel bar grating is a series of bearing bars joined to perpendicular cross bars at various intervals to form a load-bearing panel.
Our stainless steel bar gratings are available in press welded, manually welded, press locked and swage locked constructions with standard plain or optional serrated work surfaces.
Technical specifications of our stainless steel bar grating are shown in the table below:
| Specification | Description |
| Material | 304, 304L, 316, 316L stainless steel |
| Manufacturing Process | Welded, swage-locked, or press-locked |
| Surface Type | Standard plain surface, serrated surface |
| Cross Bar Spacing | 2" or 4", center to center |
| Bearing Bar Spacing | 15/16" or 1-3/16", center to center |
| Bearing Bar Height | 20mm to 60mm |
| Bearing Bar Thickness | 2mm to 5mm |
| Cross Bar Size | 4mm to 10mm diameter |
| Slip Resistance | Serrated or plain surface, depending on the application |
| Installation Method | Welding, clips, or bolts and nuts, depending on the application |
| Compliance | Meets industry standards and applicable building codes, including ASTM, ISO, and ANSI/NAAMM |
Note:
For more information on safe load data, please feel free to contact us, and our engineers will be more than happy to share them with you.
